Thick Turret Double Bank Workstation with 12 Dwr Cabinet | Versatility

VT-23380 DESCRIPTION

Thick Turret Double Bank Workstation with 12 Dwr Cabinet

Double Bank Turret Press Workstation features a 12-Drawer Cabinet and a hard Maplewood work surface. Includes flexible divider system for organized tooling storage. Versatility's heavy-duty welded steel cabinets safely organize and protect expensive turret tooling. Tool jig or vise can be mounted to create a neat and organized workspace – makes an ideal high-density turret press tooling workstation.  Delivery 4 weeks.

3
3" Turret Tooling Drawer

Drawer for Turret Guide Assemblies and Forming Tools
9” Drawer for Large Guide Assemblies, Forming Tooling and Tooling Stand Inserts

Learn how to choose the Cabinet & Change Over Cart for your tooling!

DOWNLOAD
Versatility's Industrial
Tooling Selector Guide

DOWNLOAD
VT-23380 Thick Turret Double Bank Workstation with 12 Dwr Cabinet
Product Literature

GOTO
Versatility's Turret Tooling
Identification Table

If you are not sure of the type of tooling, you own,
please call today and speak with one of our engineers. 708.389.8909

Price: $5950.00

Specifications

VT-23380 Thick Turret Double Bank Workstation with 12 Dwr Cabinet & Maple Wood Top

Cabinet Dimensions | Versatility® Turret Double Bank Workstation with 12-DWR CAB

  • Cabinet Dimensions:
    84”W x 30”D x 35.5”H

  • Cabinet Bank Dimensions (Each):
    39”W x 27-1/2”D x 33”H

  • Shipping Weight: 1150 lbs

  • Capacity: 764 tools
    276 punches and 488 dies

Cabinet Dimensions | Versatility® Turret Double Bank Workstation with 12-DWR CAB

  • Standard Color: Industrial Blue Powder Coat; Red, Black or combination available. (Custom colors require appropriate lead time.)
  • 12-Drawer Standard Configuration includes:
    – (8) 3” Deep Drawers
    – (2) 5” Deep Drawers
    – (2) 9” Deep Drawers

3

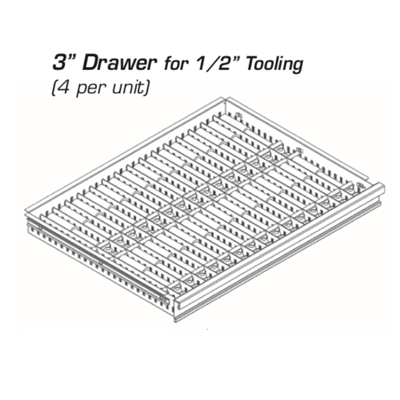

  • 3" Drawers for 1/2” station tools
    – Capacity up to 32 punches and 80 dies
    – 200 pound drawer capacity

3

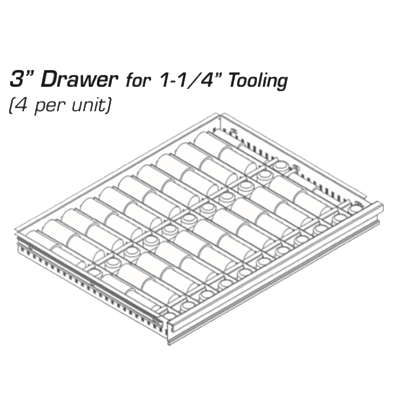

  • 3" Drawers for 1-1/4” station tools
    – Capacity up to 22 punches and 33 dies
    – 200 pound drawer capacity

5

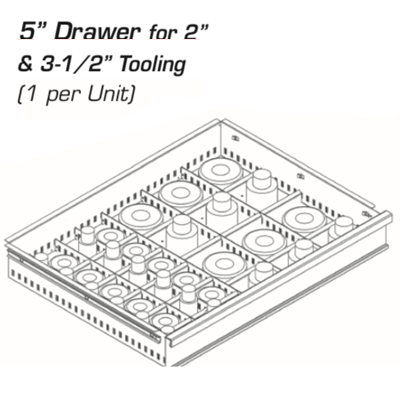

  • 5" Drawers for 2" and 3-1/2" station tools
    – Capacity up to 18 punches and 18 dies
    – 200 pound drawer capacity

5

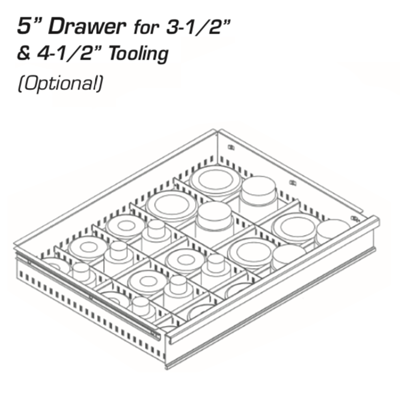

  • 5" Drawers for 3-1/2" and 4-1/2" station tools
    – Capacity up to 10 punches and 13 dies
    – 200 pound drawer capacity

9

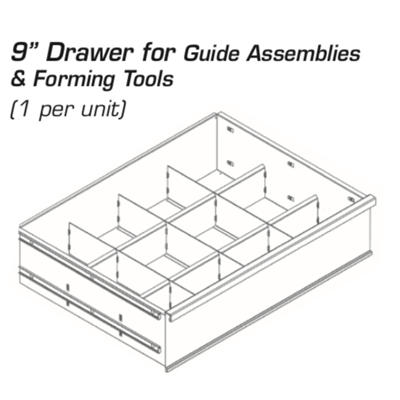

  • 9" Drawers for guide assemblies and forming tools
    – Capacity up to 12 tools
    – 400 pound drawer capacity

Drawer Insert Stands

  • Optional Tooling Stand Inserts are available for the 9” deep drawers.

  • 9" Drawers with Optional Tooling Stand Inserts
    – Capacity for up to 12 inserts in each 9” Drawer
    – 400 pound drawer capacity









Features & Benefits

VT-23380 Thick Turret Double Bank Workstation with 12 Dwr Cabinet & Maple Wood Top

  • Compliments “Lean” and “5S” Initiatives. Increase Green Light Time!
  • High-Density Storage – organizes and protects up to 764 tools
  • Capacity for 276 punches and 488 dies (see back) while saving floor space
  • 12 lockable drawers including:
    – (8) 3-inch deep drawers (200 Pound Capacity)
    – (2) 5-inch deep drawers (200 Pound Capacity)
    – (2) 9-inch deep drawers (400 Pound Capacity)
  • Custom Drawer Configurations available to match your tooling mix
  • Robotically MIG Welded 14-, 16- and 18-gauge Construction for Strength and Durability; Lasting Powder Coat Finish
  • 1-3/4” thick laminate hard maple top with a protective coating
  • Versatility’s patented 1-ata-Time® drawer interlock system provides the best in class safety by preventing cabinet tip over.
